DJI Agras T20P Sprayer Drone

DJI Agras T20P Sprayer Drone

Regular price $12,499.00 USD
Regular price Sale price $12,499.00 USD
Sale Sold out
No reviews
  • Best Price
  • Return Policy
  • Fast Shipping

The AGRAS T20P is light and nimble while packing powerful performance. It can carry a spraying payload of up to 20 kg[1] and a spreading payload of up to 35 L (25 kg)[1], and is equipped with a Dual Atomized Spraying System, DJI Terra, Active Phased Array Radar and Binocular Vision. It supports multiple operations from surveying, mapping, to spraying and spreading, offering superior performance and versatility at best value.

Light And Nimble

The AGRAS T20P features a four-rotor and new tilted truss design that reduces its
size by 77% for easy handling by one person. Perfect size for optimal function

(Farmland) - Per Hour 12 Hectare[2]
(Orchard) - Per Hour 2.6 Hectare[3]
(Spreading) - Per Hour 1 Tonnes Of Fertilizer[4]

  • 25 kg spreading payload
  • 20 kg spraying payload
  • Active Phased Array Radar + Binocular Vision
  • Dual Automized Spraying System
  • Supports flight spraying/spreading and RC mapping
  • IPX6K protection[5]
  • Generator Powered by fuel + electricity

Spraying System

Dual Atomization For Even Spraying

Magnetic Drive Impeller Pump

The new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable. Quick disassembly by hand for easy cleaning

Dual Atomized Centrifugal Sprinkler

The dual atomized spray disc ensures even droplets and more efficient pesticide usage.
The proprietary centrifugal valve prevents leakage, avoids over-fertilization, pollution, and reduces pesticide use while protecting the environment.

T20P Spreading System (25 kg)

Enhanced Spreading Efficiency For Superior Performance

1 Tonne Of Fertilizer Per Hour

The T20P Spreading System now supports greater payload weight and capacity of up to 25 kg and 35 L[6].

Fast Disassembly And Cleaning

The spreading device can be dismantled in 3 minutes and washed with water.

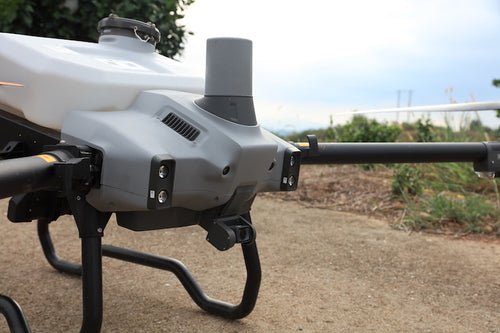

Active Phased Array Radar + Binocular Vision

Omnidirectional Obstacle Sensing

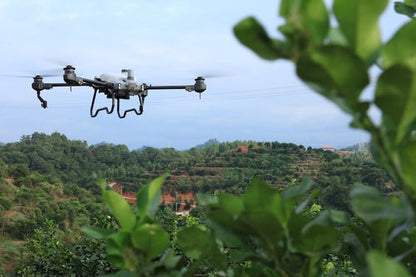

The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50 m [7]allows for intelligent terrain following, smooth scaling and bypassing of multiple obstacles. DJI Agras aircraft tackles complex terrain with ease, even in hilly orchards.

Mapping, Spraying And Spreading, All In One

The AGRAS T20P combines mapping(with D-RTK 2 mobile station), spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote control without fully internet connection. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

Turbocharged Remote Controller For Effortless Mapping

The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes[8]. The payload for each flight is maximized with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.

Robustly Tested For Ultimate Reliability

The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as waterproofing, dust prevention, corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.

Ultra-Fast Charging

The 6000W Multifunctional Inverter Generator contains a detachable charging module and is compatible with utility power input (Advanced Pro Combo supports) as well as various charging scenarios. Fast charging of two batteries in 9 minutes, with the 13000mAh Intelligent Flight Battery [9].

D6000i Multifunctional Inverter Generator

  • 20L tank charges 60 batteries [9]
  • 1500W AC output
  • 9-min ultra-fast charging
  • 220V/380V utility power input
  • (Advanced Pro Combo supports)

Smart Charger

  • Battery Station provides 7,200 watts of charging power and can charge a battery in 10 minutes.
  • It also has a backup power system and supports dual-channel alternated charging with power adaptation and safer operation.

T20P Intelligent Flight Battery

  • Capacity up to 13,000 mAh
  • 11.5C while discharging, 6C while charging warranty coverage of 1,500 charging cycles[10]

DJI Agras Intelligent Cloud

With the DJI Agricultural Cloud Platform and P4 Multispectra, PHANTOM 4 RTK or AGRAS aircraft, users can carry out field patrols, land leveling monitoring, seedling identification, long-term growth analysis, and variable spraying/spreading operations using prescription maps. Paired with the DJI P4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision, based on the full-cycle growth of the crops and the farmland’s prescription map. The feature is useful in for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.
