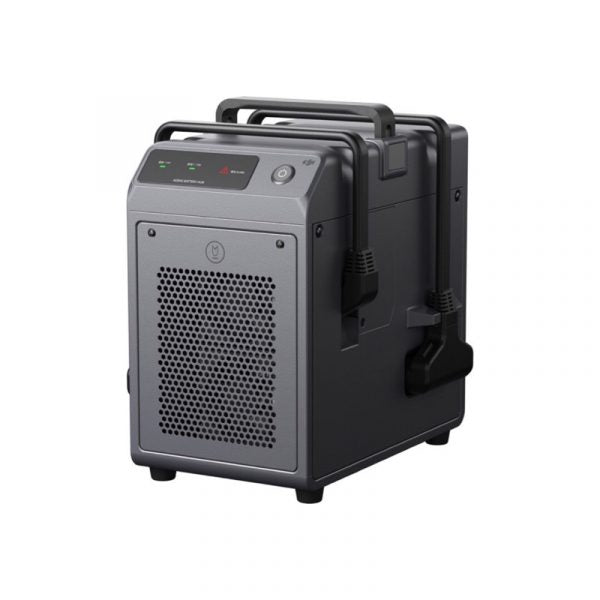

DJI T30 Intelligent Battery Station (with ACDC) (HJ)

The T30/T10 Intelligent Battery Station can connect with up to two batteries. While charging, the battery station monitors the status of the batteries and can automatically adjust the charging current if required. The battery station continues to charge even if the ventilation holes are blocked.

Users can check the battery charging status LEDs and the warning indicator on the operation panel of the battery station to confirm if there are any errors. The battery station can be connected to a remote controller using a USB-C cable and users can launch the DJI MG or DJI AGRAS TM app to check more detailed information regarding any errors. Additionally, the battery station has the following functions: overcurrent protection, overcharging protection, under-voltage protection, overheating protection, and status display.

The general descriptions in this user guide apply to both the T30 Intelligent Battery Station and T10 Intelligent Battery Station. The illustrations in this user guide may vary from the actual product. The T30 Intelligent Battery Station is used as an example below

Specifications:

• T30 Smart Charging Manager
• 7200W charging power
• 10 minutes super fast charge
• Backup power system, dual channel wheel charging
• Adaptive power, safer charging
• Operating Temperature Range: -5° to 45° C (23° to 113° F
• Dimensions: 300×280×230 mm
• Output Channel: 2
• Compatible Battery: T30 Intelligent Flight Battery
• Weight: Approx. 5.5 kg (without CPX-3000W Switching Power Supply)

Compatibility:
DJI Agras T30
T10 | T16 | T20 | T20P | T40 Intelligent Flight Battery
